Toyota Prius Red Triangle Light: What It Means and How To Fix
The red triangle with an exclamation point on your Prius dash is the master warning light - it does not describe a fault on its own, it points you toward one. Think of it as the Prius saying "check the other warnings". If it appears alone and clears, the cause is often minor. If it shows up alongside a hybrid system, coolant temperature, or check engine light, stop the car safely and do not keep driving until you know what triggered it.
What the red triangle actually means
Toyota officially calls this the master warning light. It is an umbrella alert - it fires whenever the car's systems detect a fault serious enough to demand attention right now. The triangle itself does not tell you what broke. It tells you to look at the rest of the instrument cluster for the real offender.
On second and third generation Prius models (2004-2015), owners nicknamed it the "red triangle of death" because it so often appeared alongside hybrid system faults that felt catastrophic. In most cases the car is still drivable for a short distance, but driving on without diagnosing the underlying fault can turn a $200 repair into a $3,000 one.
The first step every time is to note which other lights are on at the same moment. That combination tells you far more than the triangle alone.
The most common causes
1. Inverter coolant pump failure - This is one of the most frequent red-triangle triggers on 2004-2009 Prius models. The hybrid inverter has its own separate cooling loop with a small electric water pump. When that pump fails, the inverter overheats and the car throws the master warning immediately. You will often see a coolant temperature light alongside it. The pump itself costs $60-$120 in parts and is a DIY-possible job; a shop will charge $150-$300 total.
2. Hybrid battery deterioration - code P0A80 - P0A80 ("Replace Hybrid Battery Pack") is the most feared Prius code. It means one or more battery cells have dropped below acceptable voltage or show severe imbalance. The master warning fires along with the hybrid system warning. Reconditioning individual modules can cost $500-$1,200 at a hybrid specialist; a full OEM replacement is $2,200-$3,500. Aftermarket refurbished packs run $800-$1,500 installed.
3. 12-volt auxiliary battery failure - The 12V battery powers all the Prius control modules. When it weakens, modules start reporting phantom faults and the master warning fires. Replace it before spending money on anything else - a new 12V battery is $80-$150 at an auto parts store and takes 20 minutes to swap.
4. EGR valve failure - A clogged or failed EGR (exhaust gas recirculation) valve triggers a check engine light and often a master warning at the same time. The Prius EGR system is known to clog with carbon deposits, particularly on higher-mileage engines. EGR valve replacement runs $773-$1,085 at most shops, though cleaning the valve sometimes resolves it for much less.
5. Inverter failure - Less common but serious. If the inverter itself fails you will typically see a "Check Hybrid System" message alongside the red triangle and the car may refuse to enter Ready mode. Inverter replacement is $1,500-$3,000 depending on whether you go OEM or rebuilt.
6. Low engine coolant or thermostat fault - A coolant level drop or stuck thermostat can spike engine temperature and fire the master warning alongside the coolant temperature light. Check the coolant reservoir first - it takes two minutes and costs nothing.
Related warning lights that appear with it

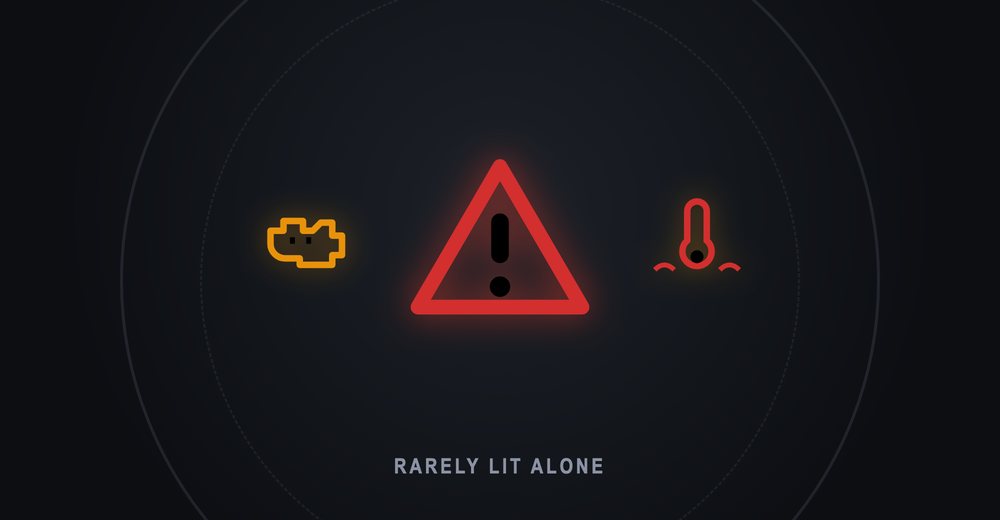

The red triangle almost never shows up by itself. The light that appears alongside it is your real diagnostic clue.
| Symbol | Warning light | Color | What it means | What to do |
|---|---|---|---|---|
| Master Warning (red triangle) | Red | Umbrella alert - a fault has been detected elsewhere in the vehicle systems | Do not ignore; check all other dashboard lights and scan for OBD2 codes immediately | |
| Check Engine (MIL) | Amber | Engine or emissions fault logged - common with EGR failure or catalytic converter issues | Scan OBD2 codes; amber alone is less urgent than red hybrid warning, but still needs attention | |
| Coolant Temperature Warning | Red | Engine or inverter coolant is overheating - often caused by inverter coolant pump failure | Stop driving immediately; check the inverter coolant reservoir for pump activity | |
| Hybrid System Warning | Red | Serious fault in the high-voltage hybrid battery or inverter - often code P0A80 or P3000 | Pull over safely and do not drive further; have the car scanned and towed if needed |
How to fix it - step by step
Step 1: Note every light on the dash before turning the car off. Take a photo on your phone. Once you cycle the ignition some lights may not return the same way.
Step 2: Scan for OBD2 codes. A basic Bluetooth OBD2 adapter ($20-$40) paired with a free app like Torque will pull stored codes from the engine and transmission. For hybrid-system codes (P0A80, P3000, P0C73) you may need a scanner that supports Toyota's enhanced protocols, or a visit to a shop. Toyota dealers and most hybrid specialists can do a full scan for $80-$150, often credited toward the repair.
Step 3: Check the easy stuff first. Open the hood and look at the 12V battery terminals - corrosion alone can cause module faults. Check the engine coolant reservoir (cap marked with a red warning icon). Check the inverter coolant reservoir (smaller, often near the windshield washer fluid) - with the car in Ready mode you should see rippling in the inverter coolant reservoir, which confirms the pump is working. No movement means a failed pump.
Step 4: Address the code you found.
- P0A80 - hybrid battery pack issue. Get a state-of-health test on the battery before committing to replacement. Some shops can recondition the pack.
- P0C73 / inverter coolant fault - replace the inverter coolant pump and flush the coolant loop.
- P0401 / EGR - try cleaning the EGR valve with intake cleaner first; replace if cleaning does not resolve it.
- 12V battery - replace with a Prius-spec AGM battery. Cheap flooded batteries cause recurring issues.
Step 5: Clear the codes and road test. After the repair, clear stored codes and drive for a full drive cycle to confirm the light does not return.
Can you keep driving with the red triangle on?
It depends entirely on what triggered it.
If the red triangle appears alone or with an amber check engine light and the car is running normally, you can usually drive a short distance to a shop - but scan for codes first so you know what you are dealing with.
If the red triangle appears with any red warning light - especially the hybrid system warning, coolant temperature warning, or a "Check Hybrid System" message on the multi-information display - stop driving. Continuing to run the car with an overheating inverter or a failing hybrid battery can cause damage that turns a $300 repair into a $3,000 one, and in the worst case can damage the battery pack to the point of no return.
The 2004-2009 Prius generation is the most prone to the inverter coolant pump failure scenario. If you see the red triangle and a coolant light on one of those cars, the pump is the first thing to check - it is cheap, and catching it early protects the inverter.
When in doubt, have the car trailered rather than driven. Towing a Prius costs $75-$150 and is far cheaper than replacing an inverter.
Frequently asked questions
Is the Prius red triangle of death expensive to fix?
It depends on the cause. A failed inverter coolant pump is $150-$300 total and is one of the most common triggers. A weak 12V battery is under $150. EGR valve replacement runs $773-$1,085. A hybrid battery (P0A80) is the expensive scenario - expect $800-$1,500 for a refurbished pack or $2,200-$3,500 for OEM. Always scan the codes first so you know what you are actually dealing with before agreeing to any repair.
Can I reset the Prius red triangle warning light myself?
You can clear the code with an OBD2 scanner, which will turn off the light temporarily. But unless you fix the underlying fault, it will come back - usually within one drive cycle. Disconnecting the 12V battery for a few minutes will also reset stored codes, but again, this only hides the problem. Fix the cause, then clear the code.
What is OBD2 code P0A80 on a Prius?
P0A80 means the hybrid battery pack has deteriorated to the point where one or more cells can no longer hold acceptable voltage. Toyota describes it as "Replace Hybrid Battery Pack". It does not always mean the entire pack is dead - individual cell modules can sometimes be reconditioned or replaced. A hybrid specialist can run a detailed state-of-health test on each module to tell you exactly what you are dealing with before spending money on a full replacement.
Why does the red triangle come on when I accelerate hard?
Hard acceleration puts peak demand on the hybrid battery and inverter. If the battery has weak cells (early P0A80 stage) or the inverter coolant pump is struggling, the system temperature spikes under load and the master warning fires. It often clears when you back off the throttle. This intermittent pattern under load is a classic early warning sign of either hybrid battery deterioration or inverter cooling issues - get it scanned before it becomes a full failure.
